500TPD Lead Zinc Ore Processing Plant
1. Lead Zinc Ore Classification
Lead-zinc ores are mainly divided into: sulfide lead-zinc ore, oxidized lead-zinc ore, also mixed lead-zinc ore, which are the most common types in global mining projects.
-- Sulfide Lead Zinc Ore: The highest economic value, easy flotation separation. Main minerals: galena, sphalerite. Most popular ore type in Peru, Bolivia, Zambia.
-- Oxidized Lead Zinc Ore: Complex gangue, high mud content, harder separation. Requires special flotation reagent formula and desliming process.
-- Mixed Lead-Zinc Ore: Combination of sulfide & oxidized minerals, needs customized processing flow to recover both lead and zinc concentrates.
Our team designs full processing plants according to your actual ore sample test report.
2. Processing Site

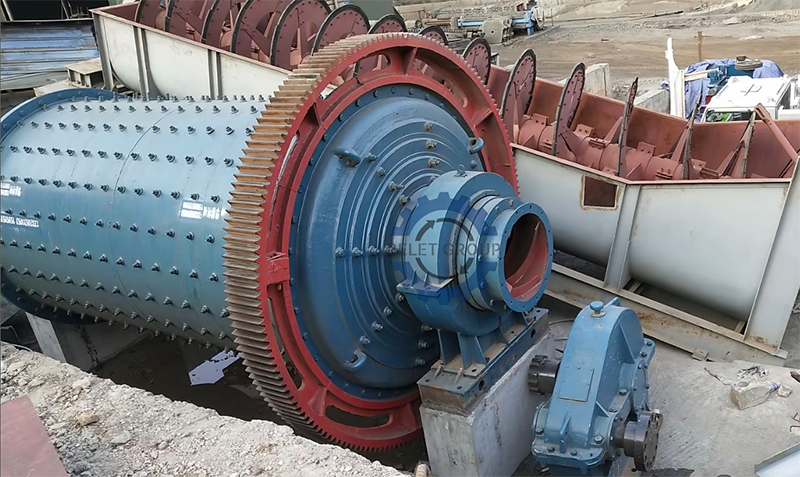

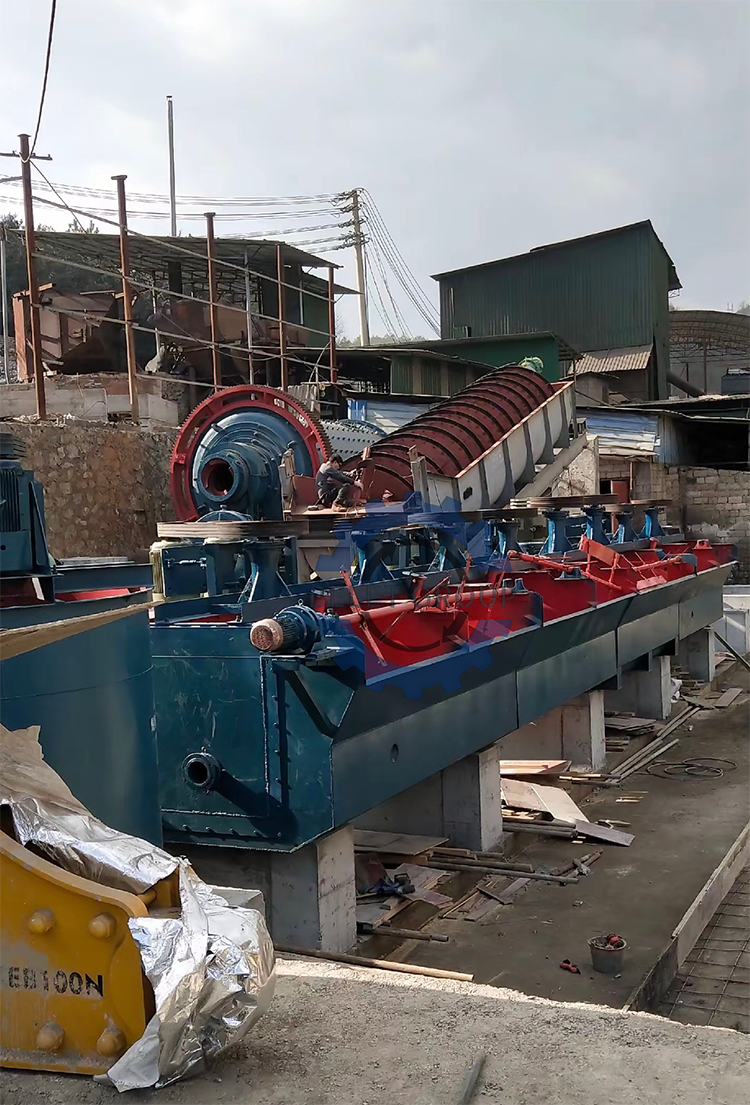

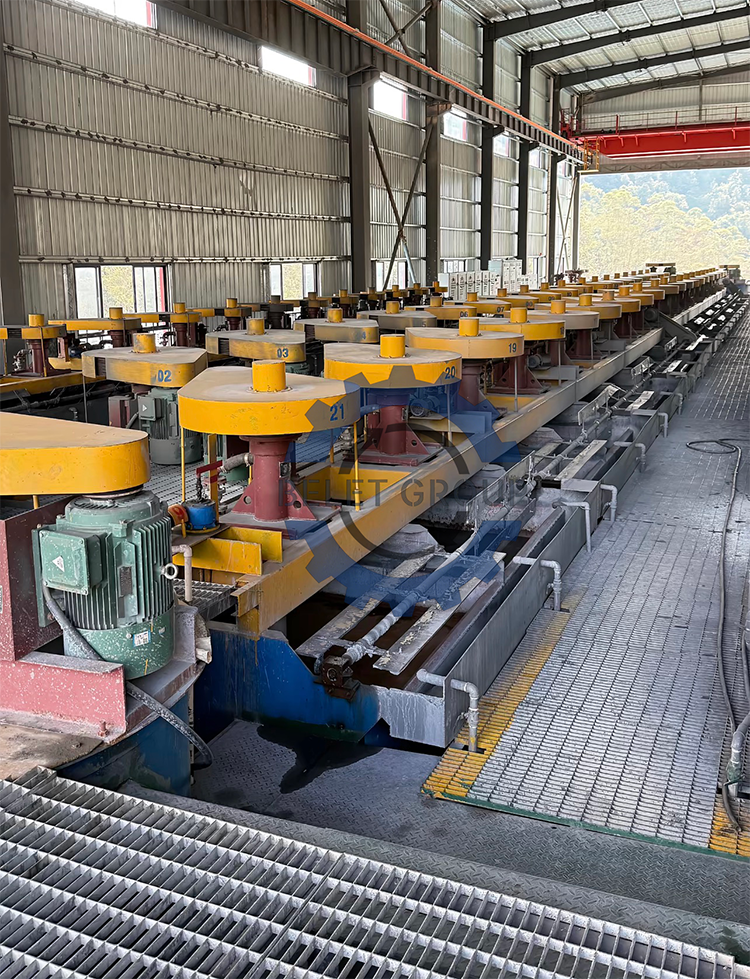

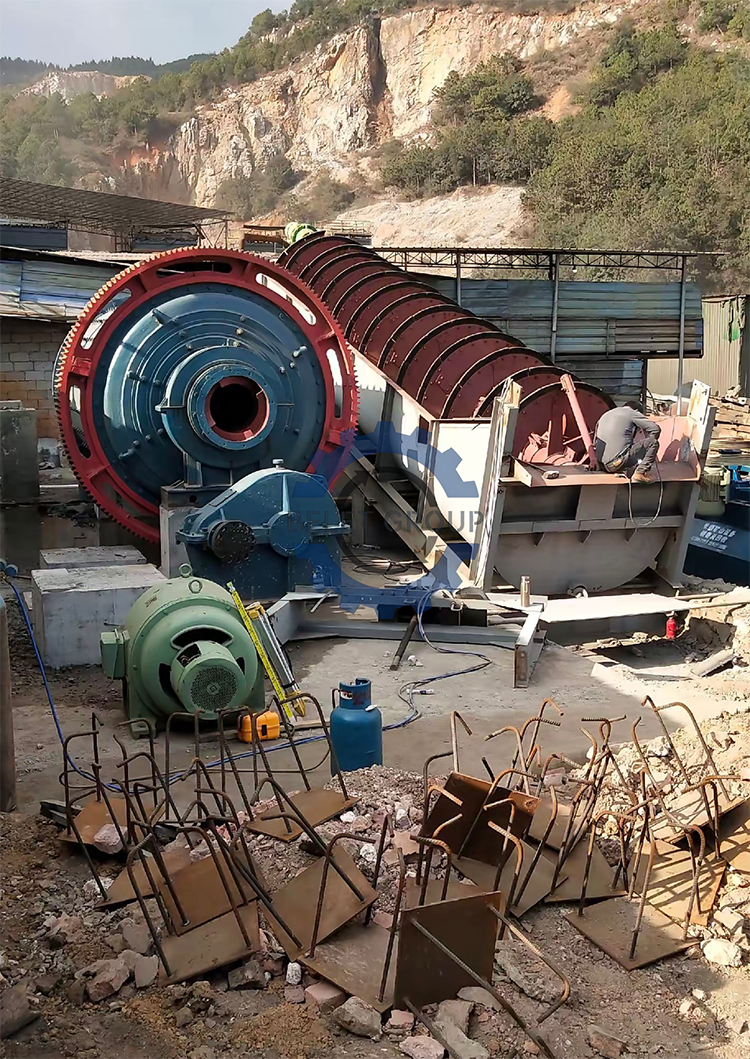

Pictures show our "500 tons per day lead zinc ore processing plant under on-site installation".
The whole line includes crushing unit, grinding system (ball mill), spiral classifier, flotation cells, thickener and filter press.

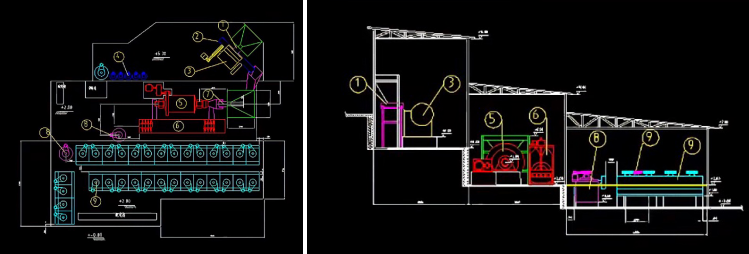

We supply complete equipment manufacturing, site layout design, installation guidance, commissioning & worker training.
Our engineers can travel to your mine site for field installation supervision for overseas mining projects.
3. Processing Technology Introduction
We adopt **priority flotation / bulk flotation process** for lead-zinc ore concentration.
The technology separates lead concentrate and zinc concentrate step by step, removes gangue impurities, upgrades low-grade raw ore into high-value lead & zinc concentrate for smelter sale.
This mature flotation technology is widely applied for 50TPD ~ 2000TPD lead zinc mineral projects, stable recovery rate, low operation cost.
4. Process Flow Chart
-- Crushing Stage: Jaw crusher + cone crusher, crush raw ore to fine particle size
-- Grinding Stage: Ball mill + spiral classifier, closed-circuit grinding to reach required fineness
-- Desliming & Conditioning: Remove slime, add special mineral flotation reagents
-- Flotation Separation: Lead flotation first, then zinc flotation; separate lead concentrate & zinc concentrate
-- Concentrate Dewatering: Thickener + filter press, get dry lead/zinc concentrate cake
-- Tailings Treatment: Tailings sent to tailing pond
5. Technical Highlights
-- Customized design based on ore mineralogy test
-- High lead & zinc metal recovery rate
-- Energy-saving ball mill and low consumption flotation reagents
-- Modular layout, easy site installation & expansion
-- Full set equipment supply + overseas on-site commissioning service
-- Stable continuous running, easy maintenance for remote mine areas
-- Low water consumption optional design for water-short mining regions
